Steering Damper/Stabilizer
Looked and looked for a steering damper for my 2013 1200 ntx Stelvio.No luck and Scott's and GPR said it was to tough !

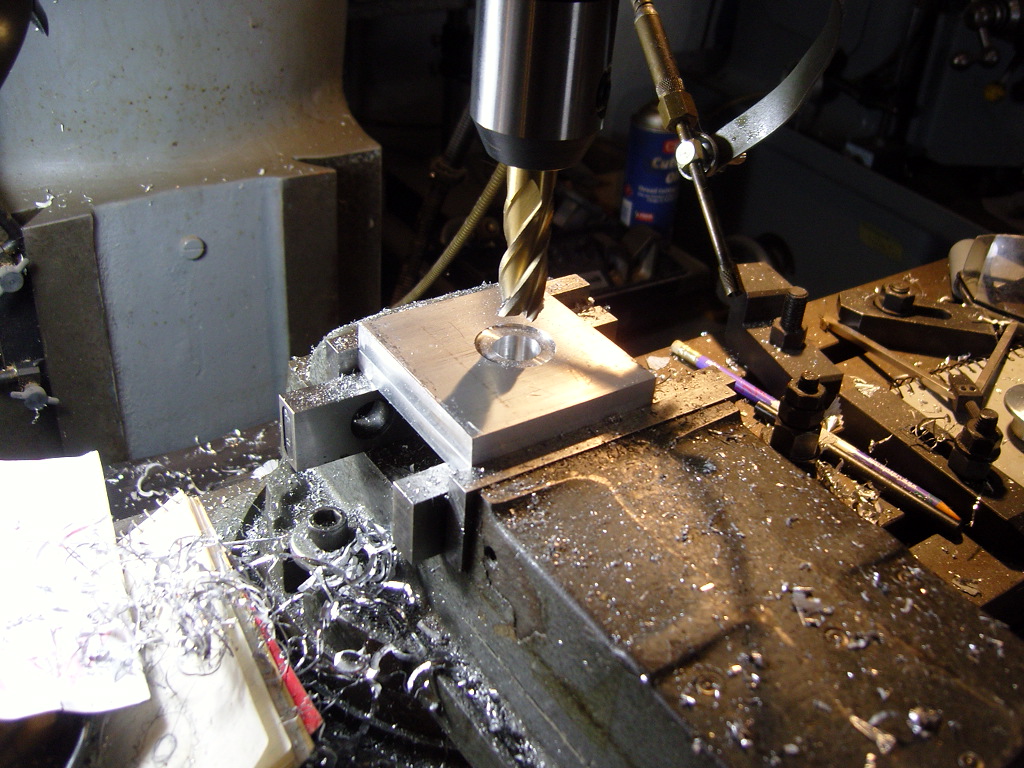

So I went out to my machine shop and got to work
CLICK HERE FOR A COUPLE OF HIGHER RES PHOTOS

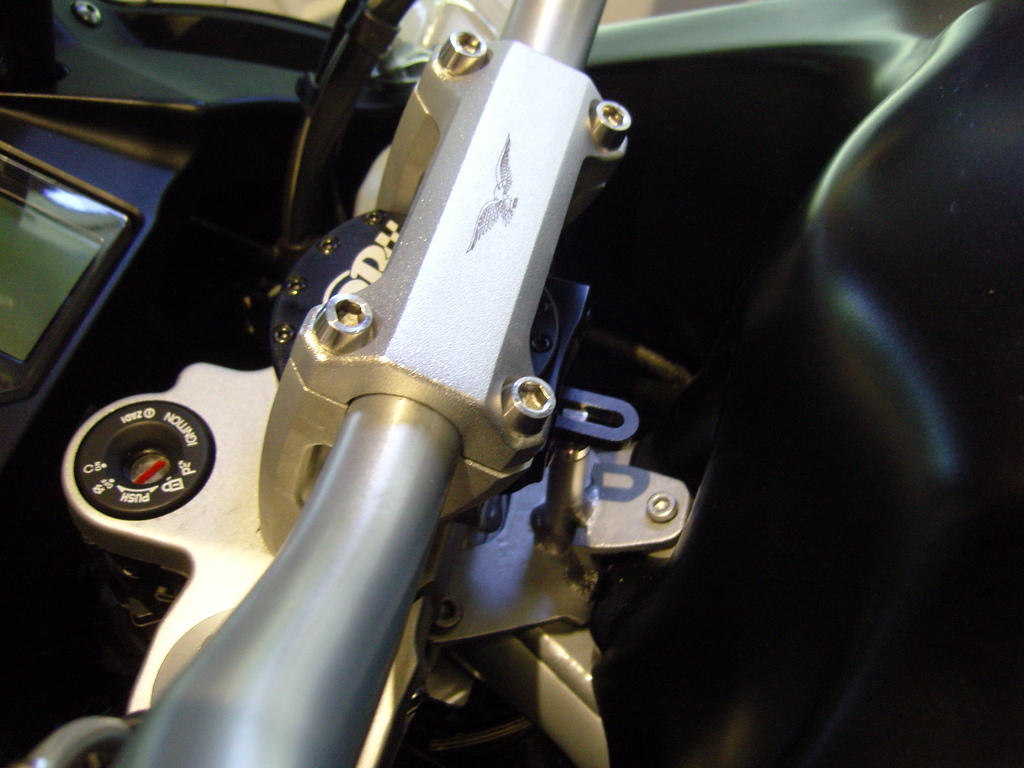

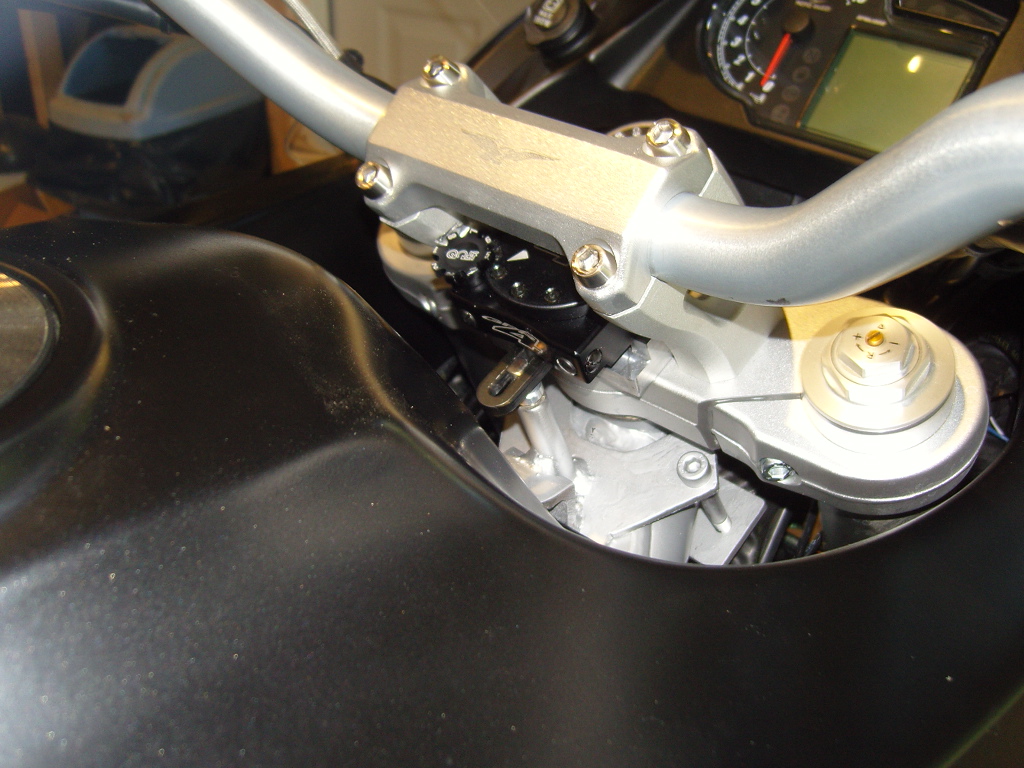

This is it all done and mounted.
CLICK HERE FOR A COUPLE OF HIGHER RES PHOTOS
===============================================================================================================

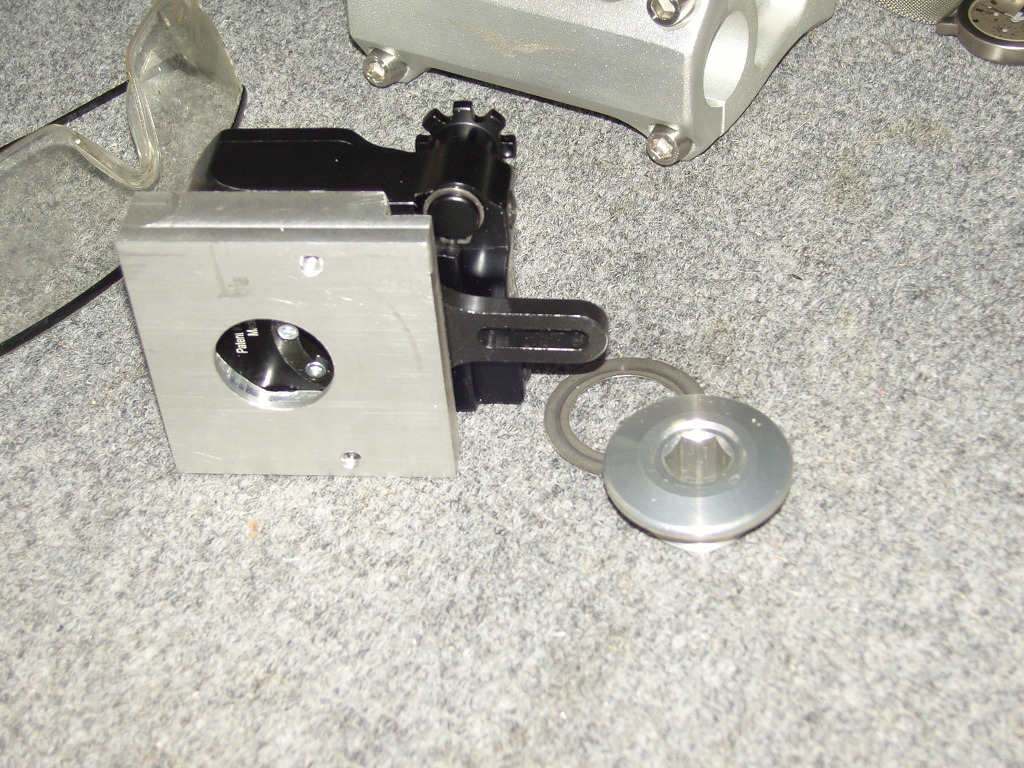

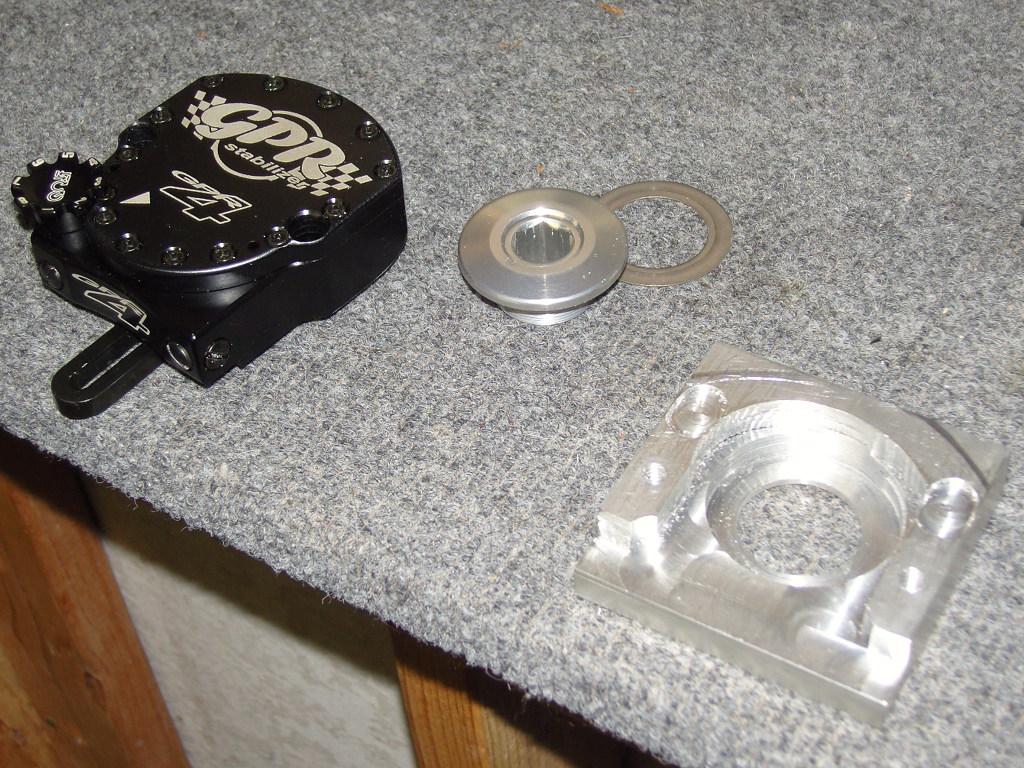

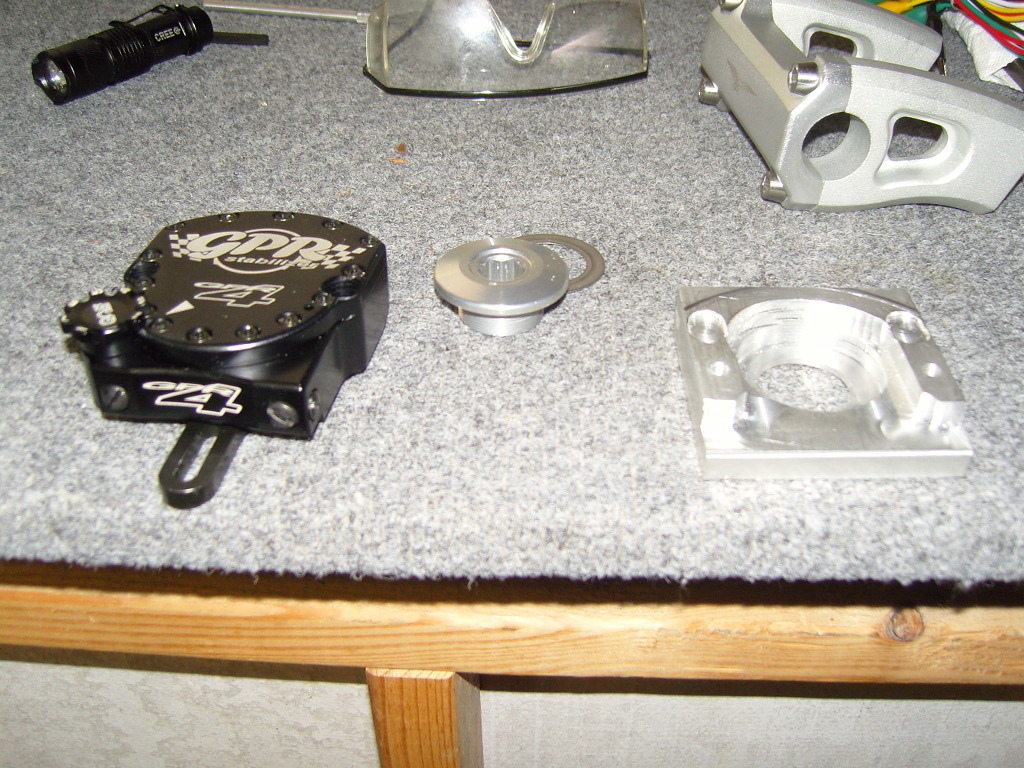

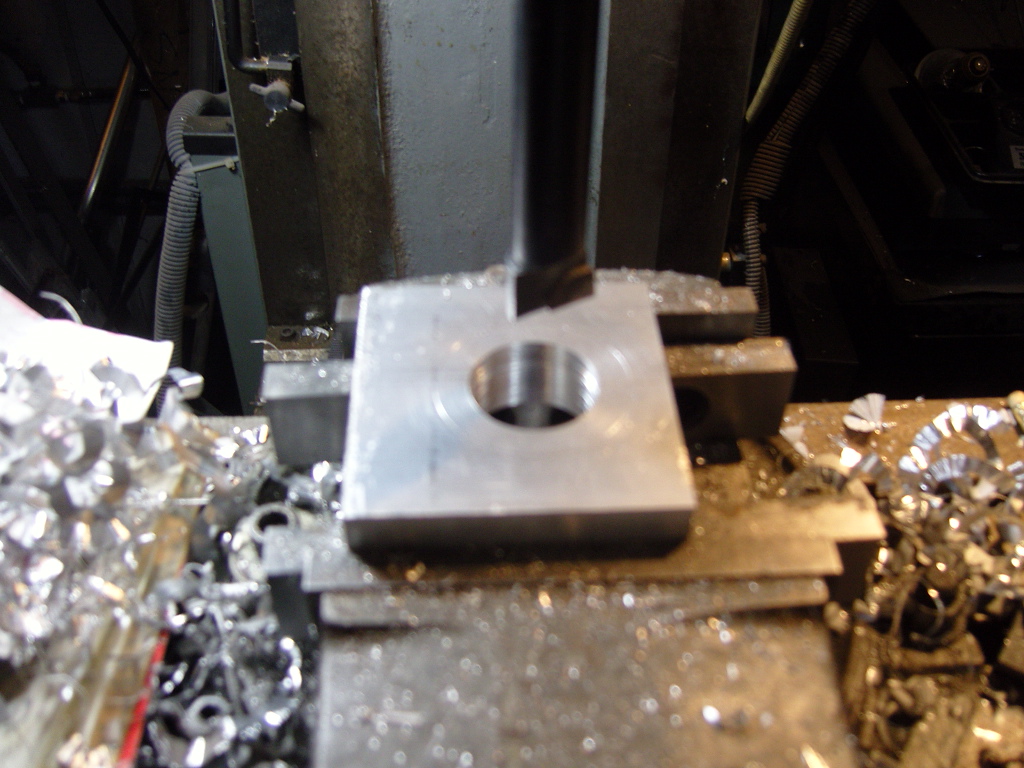

This is the GPR stabilizer mount I made in my shop. It was a super close fit.
It took a bit to come up with the design . It is very strong and used my modified stock risers.
CLICK HERE FOR A COUPLE OF HIGHER RES PHOTOS
======================================================================================

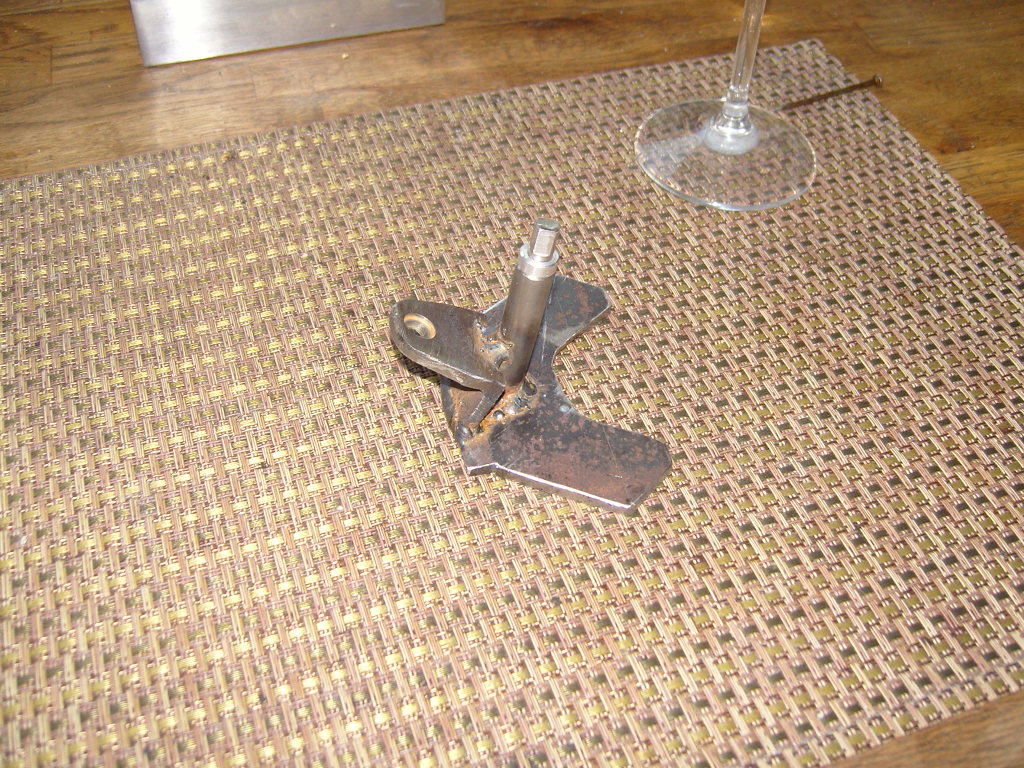

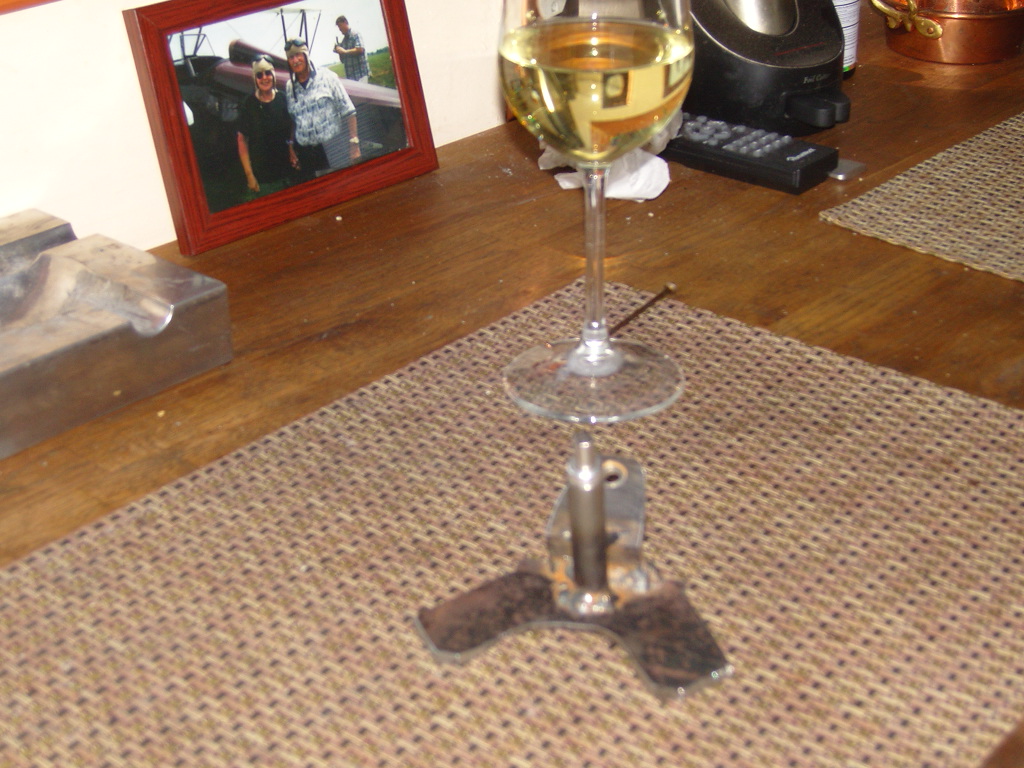

This is the frame mount for center pin.

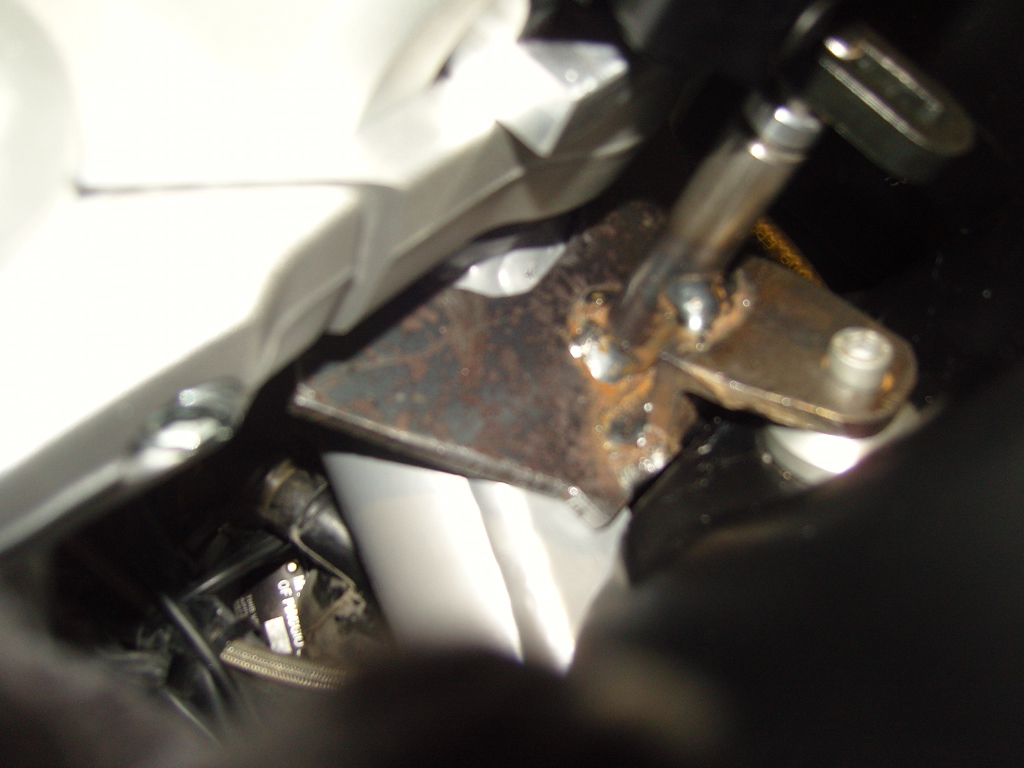

The frame mount bolts in three places . Tank bolt and both sides of the frame tube to a plate underneath.
I wanted to be able to remove it easy if needed.
CLICK HERE FOR A COUPLE OF HIGHER RES PHOTOS
===============================================================================================

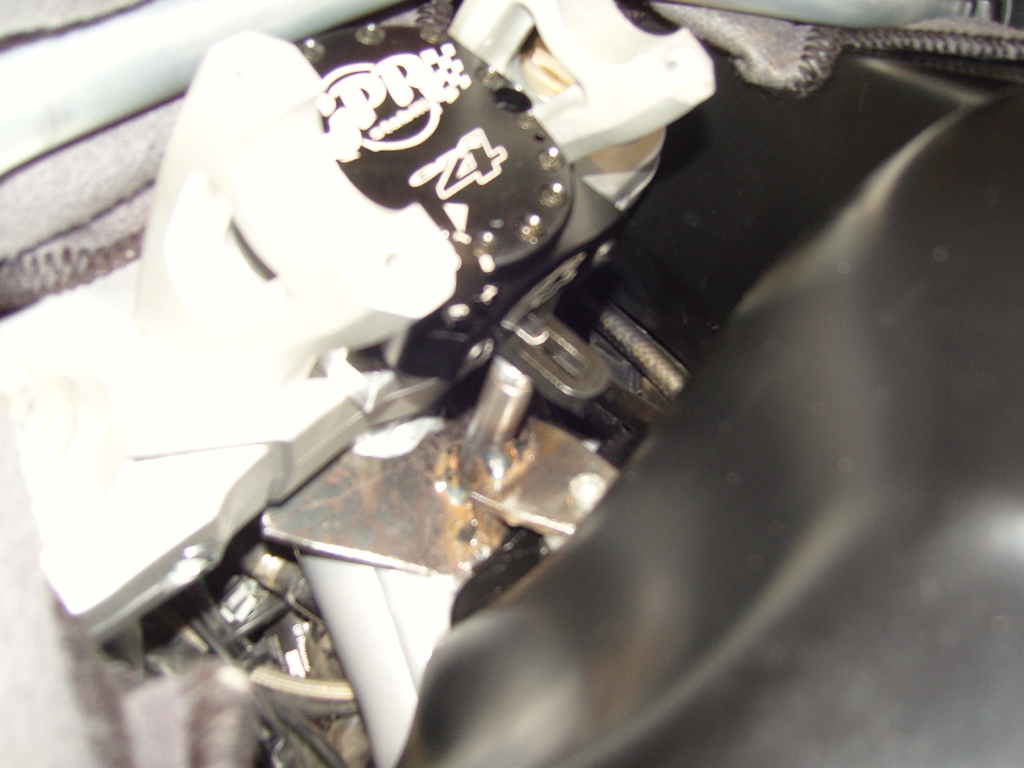

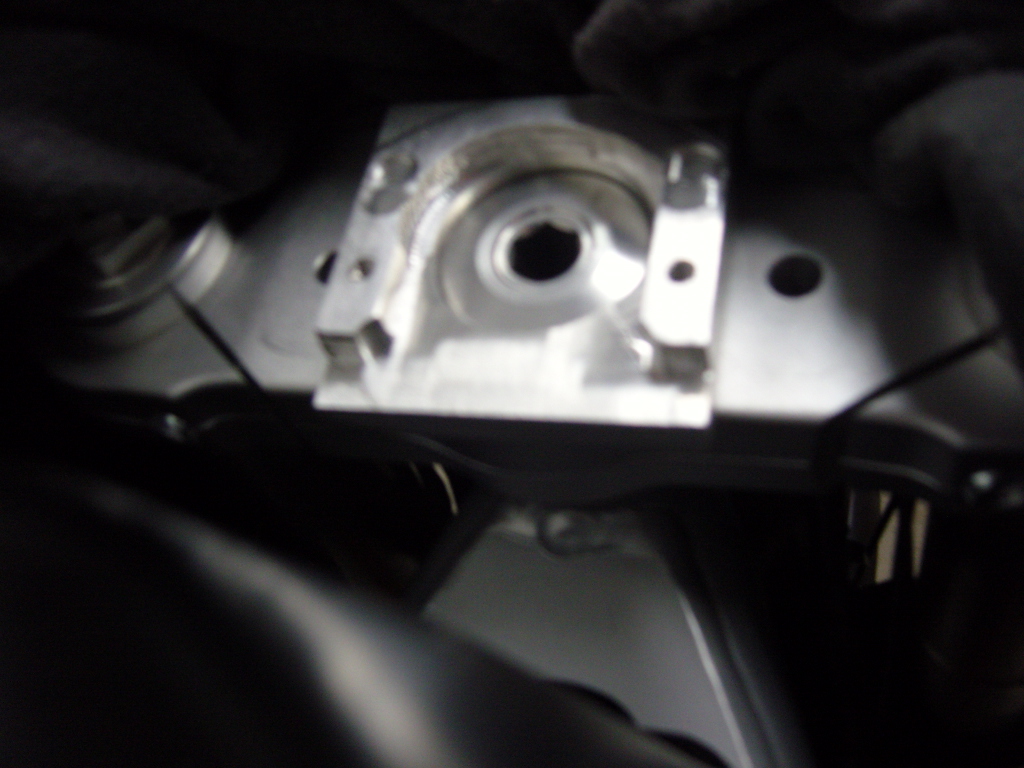

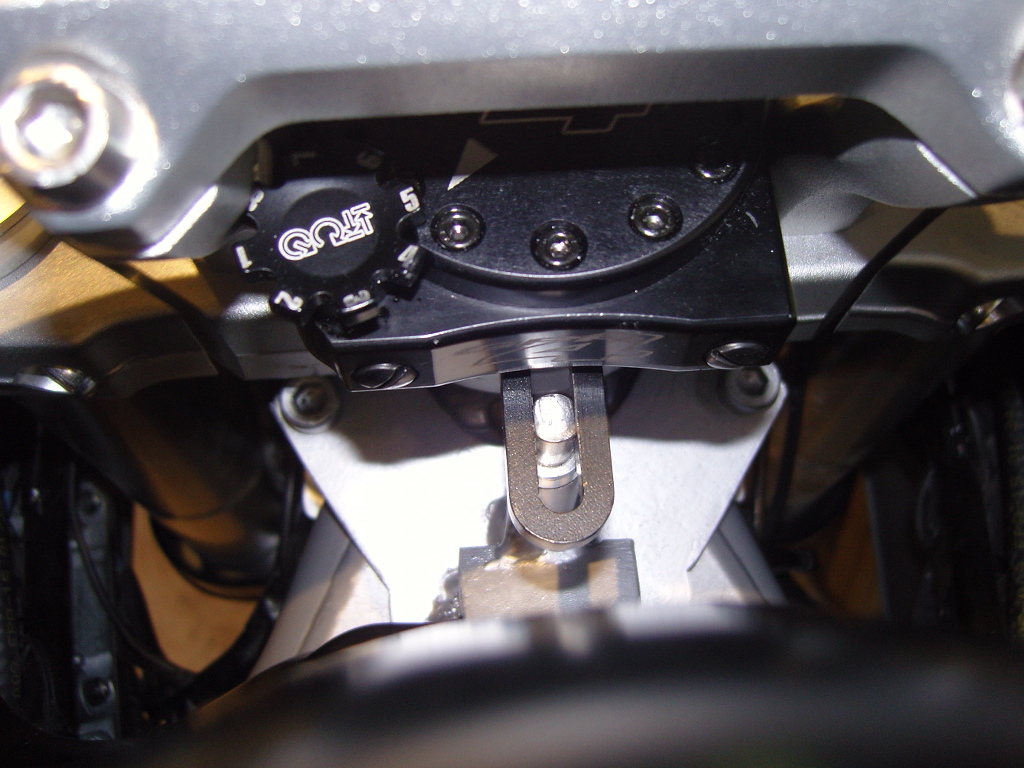

The triple tree center bolt and the two risers are what hold the damper in position.

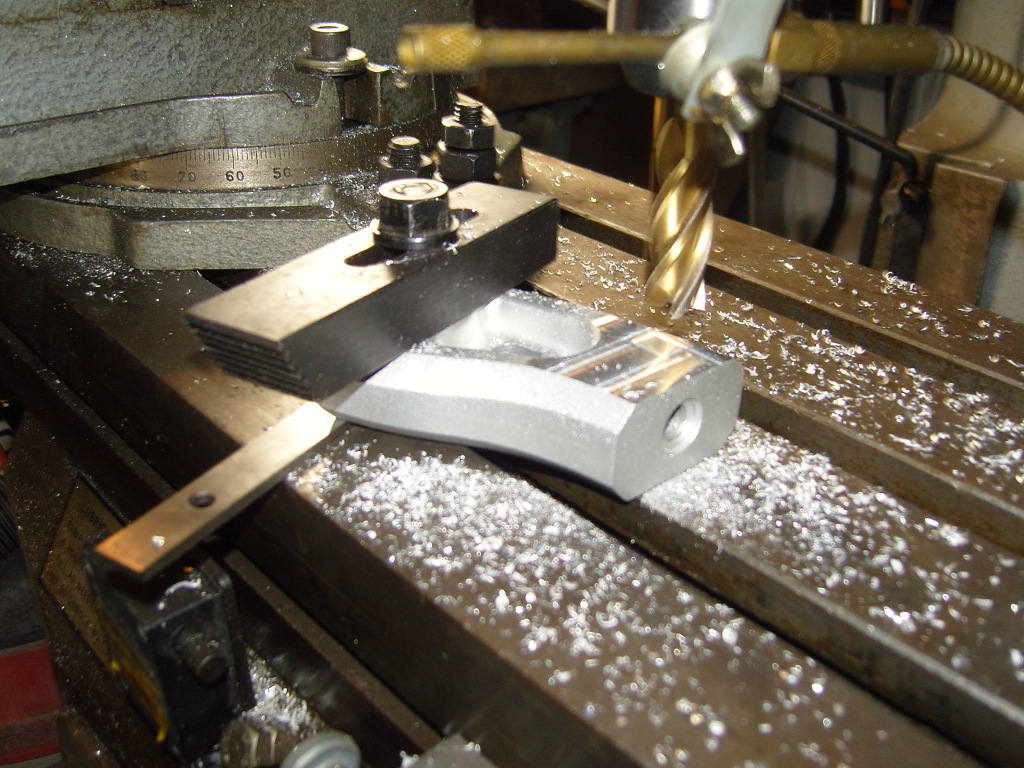

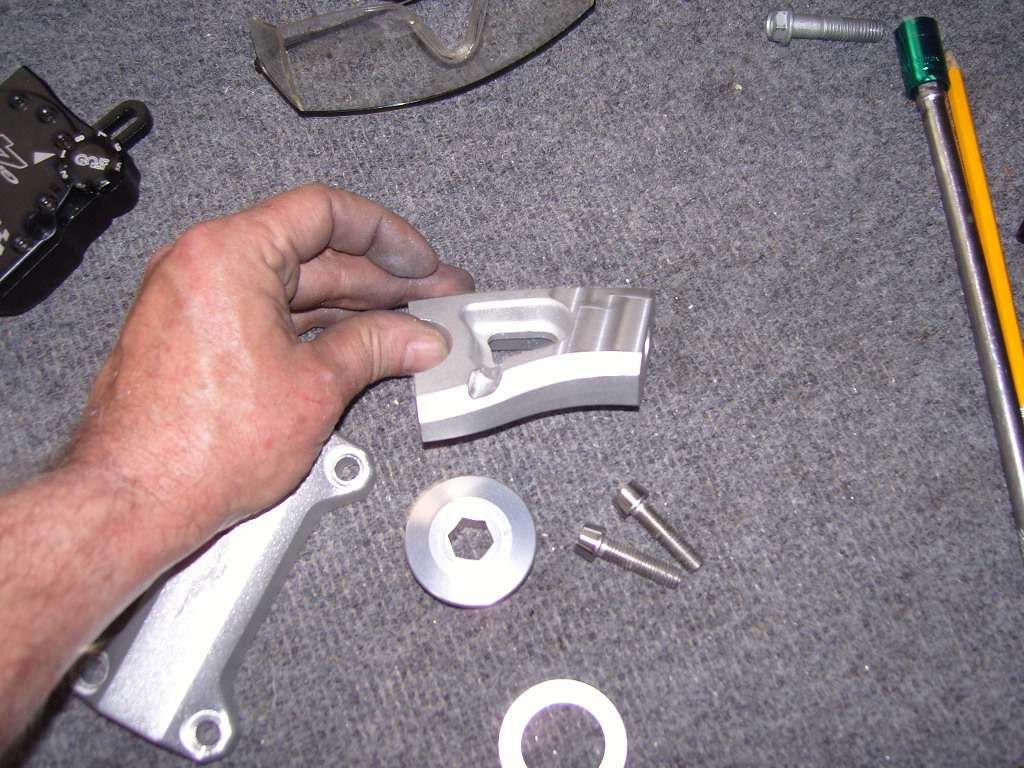

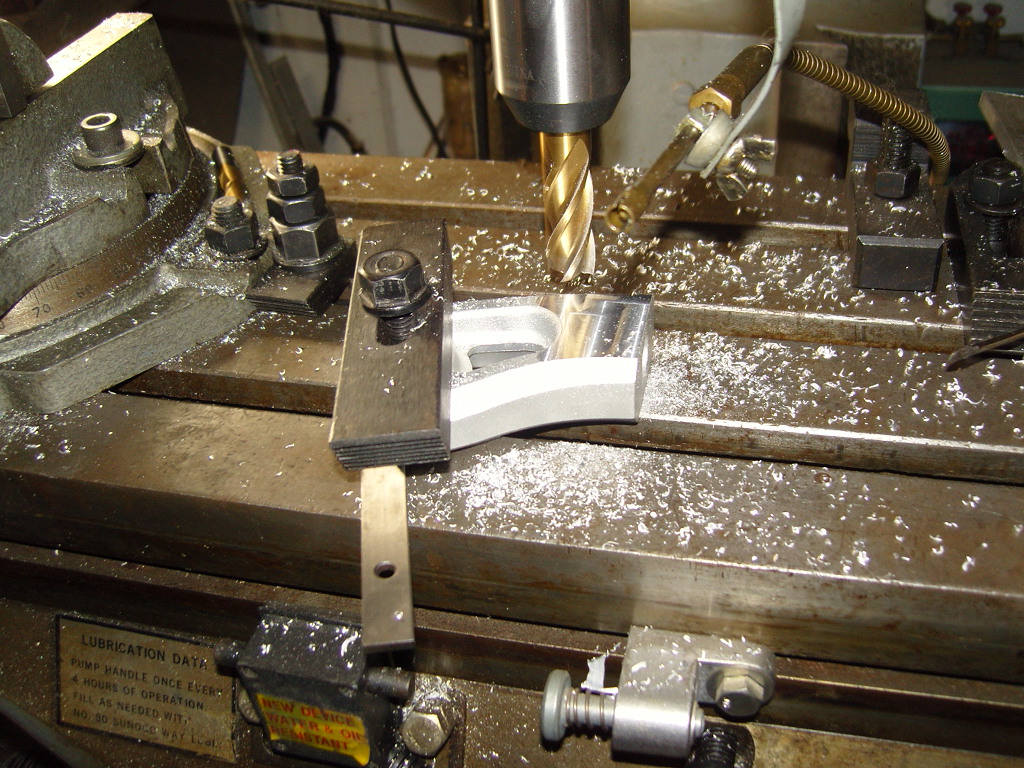

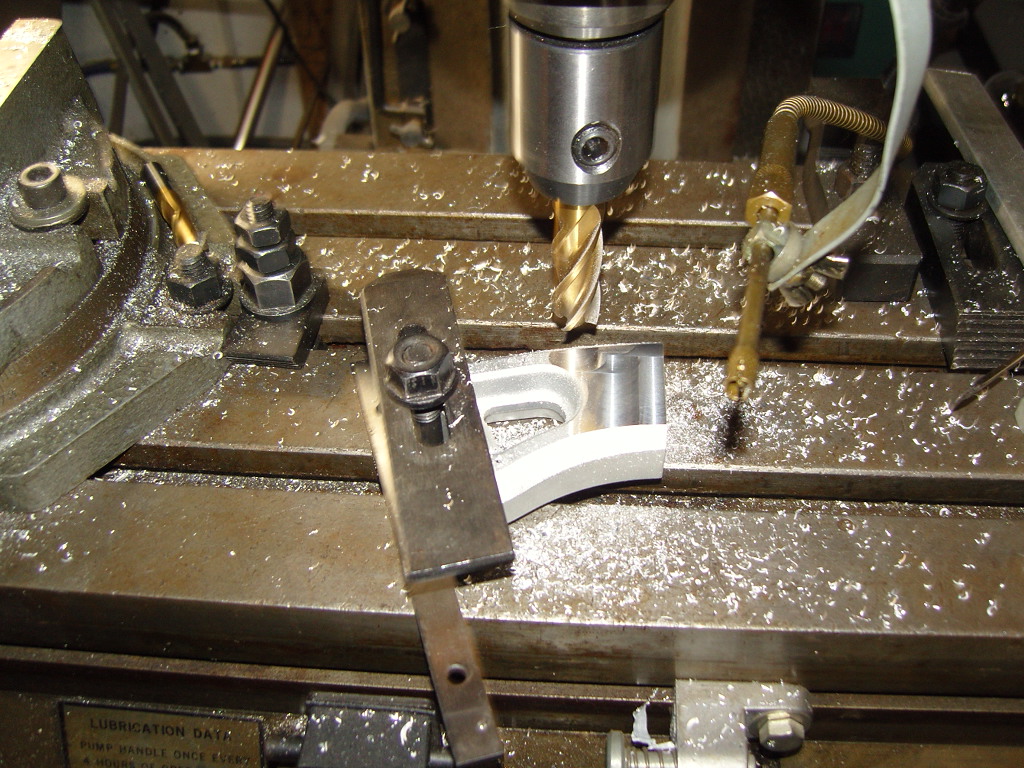

Due to the fact the risers are tapered I had to machine a flat spot to grab the GPR damper
===============================================================================================
It was a pain in the ass to make but well worth the effort. I take the Stelvio way off road and it makes the bike handle sand rocks etc much better.
